Punch V21 : Photo-realistic Rendering: There is light leakage from the drawers and under the table. :

Punch V21 : Photo-realistic Rendering: There is light leakage from the drawers and under the table. Print

Created by: Shahrukh Asghar

Modified on: Mon, 27 Jul, 2020 at 9:42 AM

If the area light source and the object on with shadow from this source intersect (or the object is very close to the source), then shadow artifacts may appear.
To avoid this, you can turn off the property "cast shadow" of objects that have an intersection with the light source.

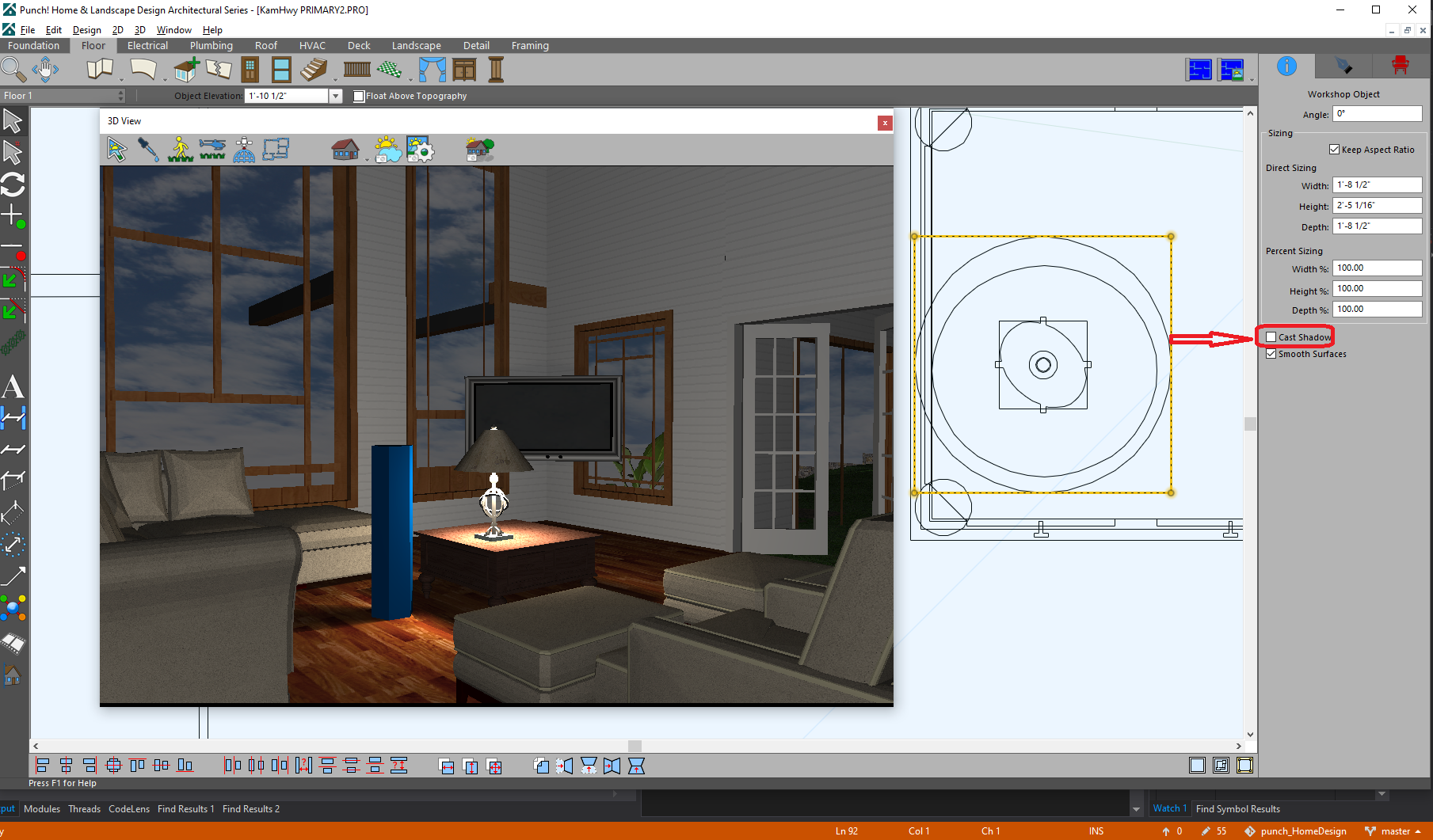

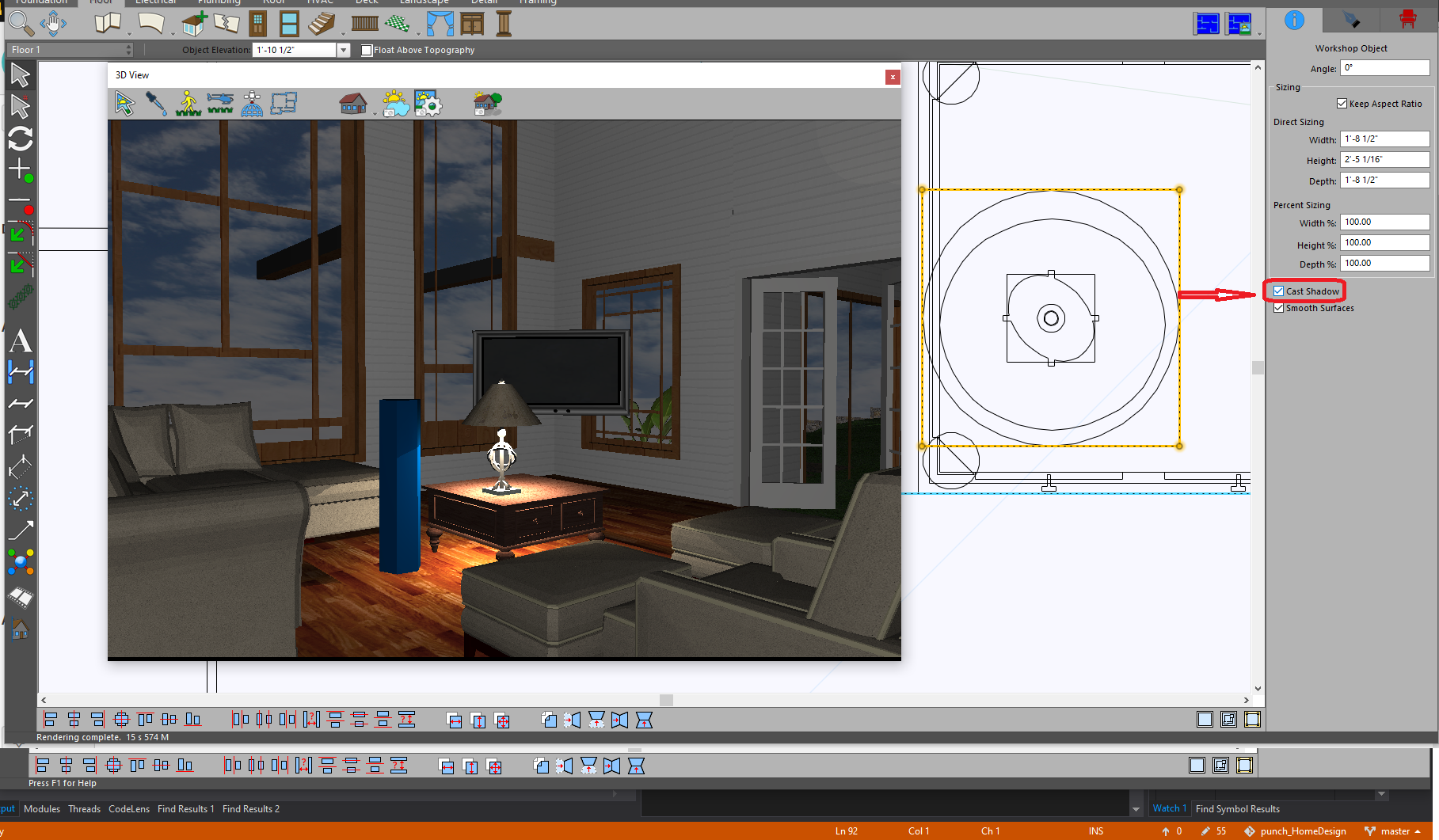

see pictures lamp_table_cast_shadow_on and lamp_table_cast_shadow_off

Shahrukh is the author of this solution article.
